Electromagnetic Door Lock 180 Kg in UAE
Electromagnetic Lock 180 Kg 350 Lbs:
- Magnetic Lock for Interior Doors
- Without Signal Output
- Voltage: DC12V or DC24V
- Holding Force: 180KG(350Lbs)
- Lock Size: 170Lx41Wx21H(mm)
- Current Draw: 12V/300mA 24V/150mA
- Electromagnetic locks consist of an armature and a coil assembly,
- which become magnetized when an electric current passes through them.
- This magnetic field secures the door
- and electronically controls when doors are locked and unlocked.
- Electromagnetic locks are fail-safe by design.

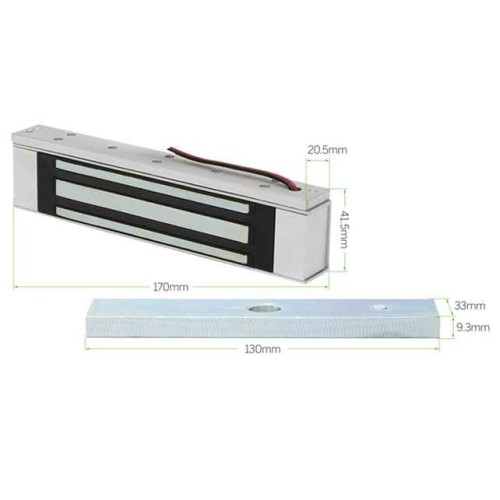

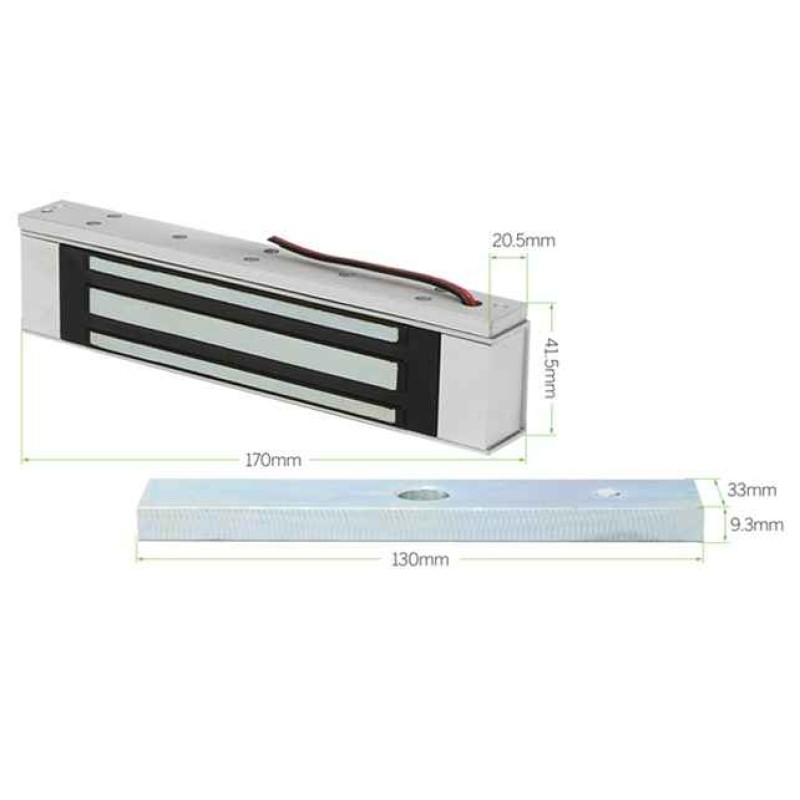

- Lock Size : 170Lx41.5Wx20.5H(mm)
- Armature plate : 130Lx33Wx9.3H(mm)
- Holding Force : 180KG (350Lbs)
- Voltage : DC12V or DC24V (24V need to customize)
- Current Draw : 12V/280mA 24V/150mA
- Signal Output : Pls see EL-350TS
- Suitable for : Wooden door, Glassdoor, Metal door, Fireproof door
- Surface Temp : ≤20°C
- Operating Temp : -10℃ ~ 55℃ (14°F~131°F)
- Suitable Humidity : 0~90%(non-condensing)
- Finishes for Shell : Anodized aluminum surface texture processing
- Finishes for Magnetic : Zinc
- Finishes for Armature : Zinc
- Weight : 1.2kg
Electromagnetic Door Lock 180 Kg in UAE
- Brand: Access Control
- Product Code: Magnetic Lock 180 Kg
- Availability: In Stock
-
150 AED
