Automatic Door Activation Microwave Motion Sensor for Swing & Sliding Doors

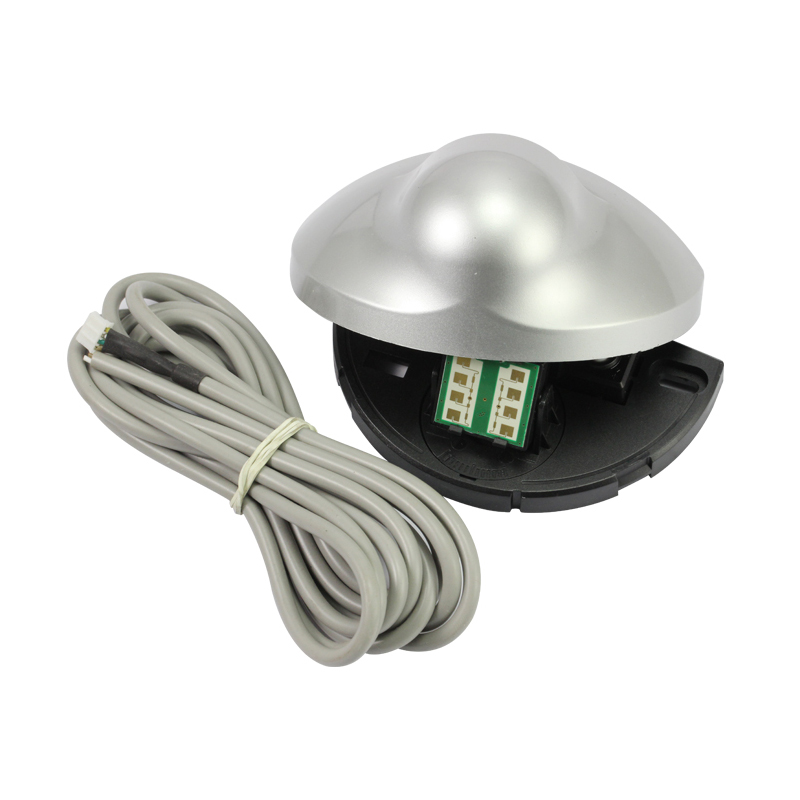

The EUROMATIC EU-M-204T Microwave Motion Sensor is a high-performance automatic door activation sensor designed for automatic swing doors, sliding doors and access control systems. Using advanced microwave radar technology, it accurately detects approaching movement and instantly activates the automatic door operator for smooth, safe and reliable entrance automation.
Operating with AC/DC 12V–24V, the sensor offers stable performance, adjustable detection sensitivity and low power consumption. It is suitable for offices, hospitals, hotels, shopping malls, airports, banks, restaurants and commercial buildings, providing fast response and dependable operation in busy environments. :contentReference[oaicite:1]{index=1}
Key Features
- Advanced microwave radar motion detection.
- Compatible with automatic swing and sliding doors.
- Fast and accurate door activation.
- Operating voltage AC/DC 12V–24V.
- Adjustable detection area.
- Adjustable installation angle.
- Stable performance with low power consumption.
- High immunity to environmental interference.
- Easy installation and adjustment.
- Compact and modern design.
- Designed for continuous commercial operation.
- Compatible with most automatic door operators.
Technical Specifications
| Model | EU-M-204T |
| Product Type | Microwave Motion Sensor |
| Detection Mode | Motion Detection |
| Operating Voltage | AC/DC 12V–24V ±10% |
| Frequency | 50–60Hz |
| Power Consumption | <2W |
| Installation Height | 3–4 Metres |
| Detection Area | Up to 4 × 2 Metres (Adjustable) |
| Output Type | Relay Output |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 115 × 73 mm |
Applications
- Automatic Swing Doors
- Automatic Sliding Doors
- Hospitals
- Office Buildings
- Hotels
- Shopping Malls
- Banks
- Restaurants
- Airports
- Commercial Buildings
- Access Control Systems
- Automatic Entrance Systems
Package Includes
- 1 × EUROMATIC EU-M-204T Microwave Motion Sensor
- Mounting Accessories
- Installation Manual
Why Choose EUROMATIC?
The EUROMATIC EU-M-204T Microwave Motion Sensor provides reliable, fast and accurate motion detection for automatic entrance systems. Its adjustable sensing area, low power consumption and compatibility with most automatic swing and sliding door operators make it an ideal solution for residential, commercial and industrial applications throughout Dubai, Sharjah, Abu Dhabi and across the UAE. :contentReference[oaicite:2]{index=2}
