EUROMATIC 3G GSM Gate Opener Controller | Mobile Gate Access System UAE
Features & Technical Specifications of EUROMATIC EU-3G GSM Gate Opener

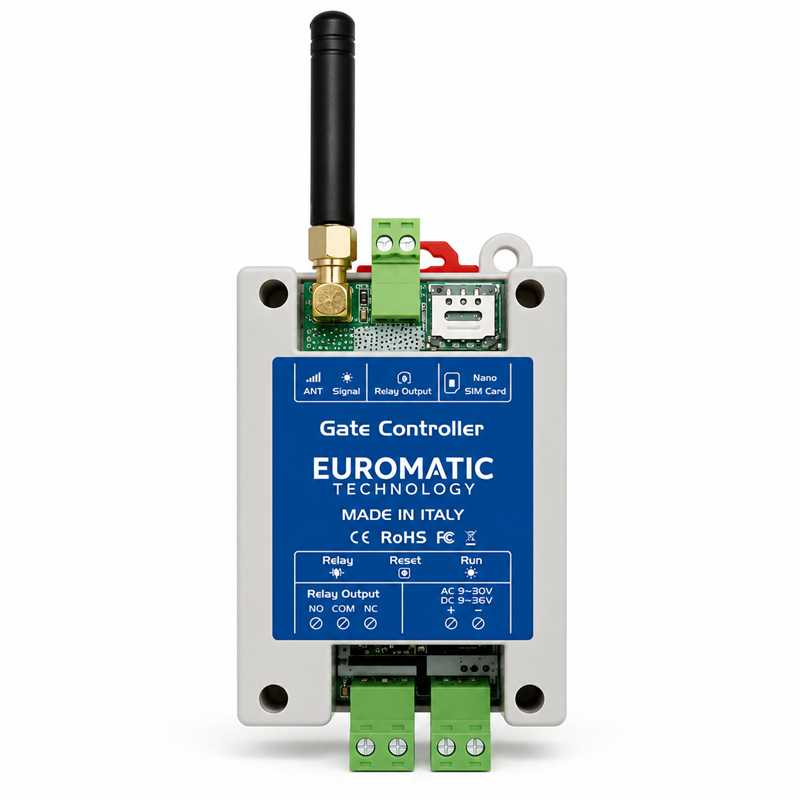

The EUROMATIC EU-3G GSM Gate Opener Controller is a smart mobile access control solution designed for automatic gates, garage doors, parking barriers, rolling shutters and access doors. Using the 3G GSM mobile network, the controller allows authorized users to open gates from anywhere by simply making a phone call.
The system operates with a Nano SIM card and uses secure Caller ID authentication. When an authorized user calls the installed SIM card number, the controller automatically rejects the call and activates the relay, allowing free gate access without call charges. Users can be added or removed quickly using SMS commands.
Key Features
- 3G GSM mobile network communication.
- Open gates using a mobile phone call.
- No distance limitation.
- Works with Nano SIM cards.
- No call charges for authorized users.
- Caller ID security authentication.
- Supports up to 200 authorized users.
- Add or delete users via SMS.
- Relay output for gate motors, garage doors and parking barriers.
- Compatible with sliding gates, swing gates, rolling shutters and access control systems.
- Simple installation and programming.
Technical Specifications
| Model | EU-3G GSM |
| User Capacity | 200 Phone Numbers |
| Network | GSM / 3G WCDMA |
| Frequency | GSM 850 / 900 / 1800 / 1900 MHz 3G WCDMA 900 / 2100 MHz |
| Power Supply | DC 9V–36V / 1A |
| Power Consumption | Maximum 50mA / Average 25mA |
| SIM Card | Nano SIM |
| Antenna | 50Ω SMA |
| Relay Output | NO / NC, 3A / 250V AC, 20A / 14V DC |
| Relay Time | 0–900 Seconds |
| Wired Switch | Supported |
| Operating Temperature | -10°C to +60°C |
| Humidity | 10–90% RH |
| Dimensions | 80 × 49 × 30 mm |
| Weight | 90 g |
Applications
- Sliding Gate Motors
- Swing Gate Motors
- Garage Door Openers
- Parking Barrier Gates
- Rolling Shutter Motors
- Industrial Doors
- Residential Villas
- Commercial Buildings
- Factories
- Warehouses
Package Includes
- 1 × EUROMATIC EU-3G GSM Gate Opener Controller
- 1 × GSM Antenna
- 1 × User Manual
Why Choose EUROMATIC?
The EUROMATIC EU-3G GSM Gate Opener provides secure and reliable mobile access without the need for remote controls or internet connectivity. It is an ideal solution for residential, commercial and industrial gate automation throughout the UAE.
