Smart Rolling Shutter Motor Controller with Remote Control Receiver
The EUROMATIC Rolling Shutter Motor Controller is an intelligent control unit designed for automatic rolling shutter systems. It provides reliable operation for side motors, center motors and tubular motors, allowing convenient control through wireless remote controls, wall switches and external safety accessories.
Designed for commercial, industrial and residential applications, this controller offers smooth motor operation, independent Open, Stop and Close functions, automatic timing, safety inputs and easy programming for new remote controls.
Applications
- Rolling shutter doors
- Commercial shops
- Warehouses
- Factories
- Garages
- Retail stores
- Industrial roller doors
- Shopping malls
Key Features
- Suitable for side motors, center motors and tubular motors
- 220V AC power supply
- Independent Open / Stop / Close control
- 433 MHz wireless remote receiver
- Supports multiple remote controls
- Easy remote programming
- Manual wall switch input
- External push button connection
- Photocell safety sensor input
- Automatic closing timer
- Motor direction selection
- Overload protection
- Stable microprocessor control
- Compact ABS housing
- Easy installation
Technical Specifications
| Model | EU-RSC220 |
| Product Type | Rolling Shutter Motor Controller |
| Supply Voltage | 220V AC |
| Frequency | 50 Hz |
| Wireless Frequency | 433.92 MHz |
| Receiver Capacity | Up to 50 Remote Controls |
| Operating Temperature | -20°C to +60°C |
| Housing Material | ABS Plastic |
| Protection Class | IP44 |
| Functions | Open / Stop / Close / Auto Close |
| Compatible Motors | Side Motors, Center Motors, Tubular Motors |

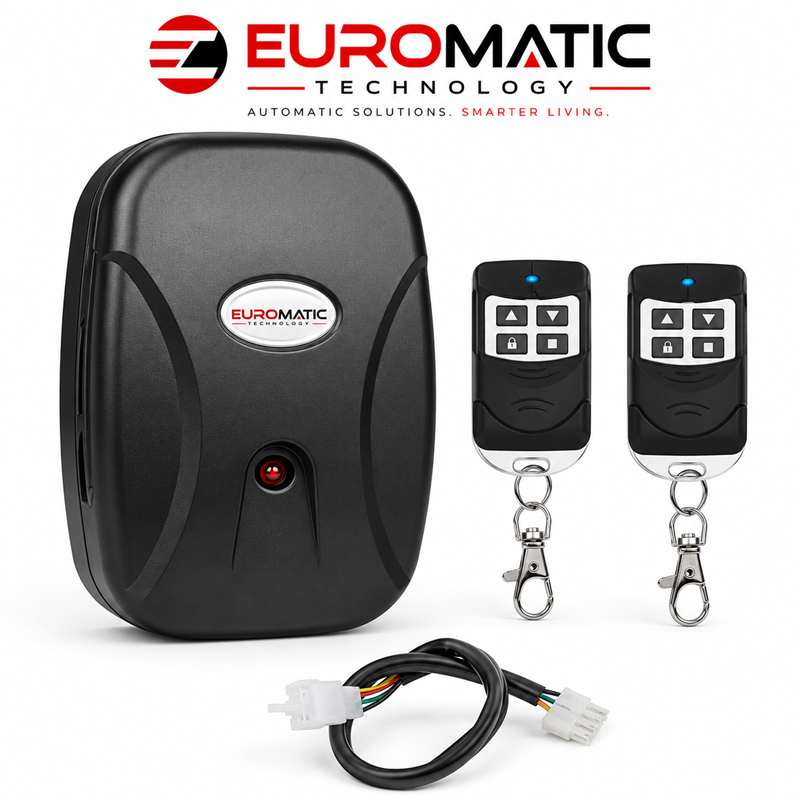

Package Includes
- 1 × EUROMATIC Rolling Shutter Motor Controller
- 2 × Remote Controls
- 1 × Receiver Control Unit
- 1 × Installation Manual
Why Choose EUROMATIC?
EUROMATIC rolling shutter motor controllers provide reliable wireless operation, advanced safety features and easy integration with rolling shutter systems. Designed for the UAE market, they offer dependable performance for commercial, industrial and residential installations.
