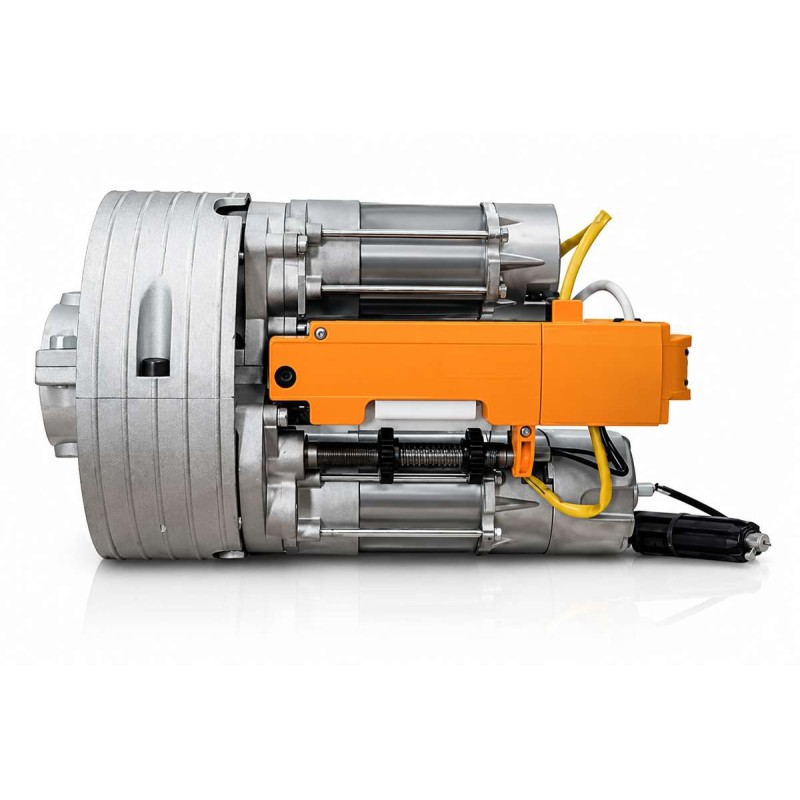

EUROMATIC TITAN 200BM E Rolling Shutter Central Motor 280 KG UAE
Heavy-Duty 280 KG Central Rolling Shutter Motor with Electrobrake
The EUROMATIC TITAN 200BM E Rolling Shutter Central Motor is a premium heavy-duty motor designed for automatic rolling shutter doors in commercial, industrial and high-security applications. Engineered with a powerful dual motor system and integrated electrobrake, it delivers reliable lifting performance for rolling shutters weighing up to 280 kg.
Manufactured with a robust aluminium alloy body and precision steel mechanical components, the TITAN 200BM E is built for continuous operation and long service life. The factory-installed electrobrake securely locks the shutter when closed, while permanent lithium grease lubrication ensures smooth, quiet and maintenance-free performance. It is ideal for shops, warehouses, factories, garages and commercial buildings throughout the UAE.
Key Features
- Heavy-duty central rolling shutter motor.
- Maximum lifting capacity of 280 kg.
- Powerful dual motor system for increased torque.
- Factory-installed electrobrake for enhanced security.
- Aluminium alloy housing with steel mechanical components.
- No plastic gears or bushings for maximum durability.
- Permanent lithium grease lubrication.
- Smooth and reliable operation.
- Suitable for commercial and industrial rolling shutters.
- Easy installation with minimal maintenance.
Technical Specifications
| Model | EUROMATIC TITAN 200BM E |
| Maximum Lifting Capacity | 280 kg |
| Torque | 260 Nm |
| Motor Speed | 10 RPM |
| Power Supply | 220–230V AC, 50/60Hz |
| Power Consumption | 1260 W |
| Current | 5.4 A |
| Capacitor | 20 μF |
| Maximum Travel | 6 m |
| Tube Shaft Diameter | Ø60 mm |
| Pulley Diameter | Ø200 mm |
| Motor Weight | 14 kg |
| Electrobrake | Built-in |
Applications
- Commercial Rolling Shutters
- Industrial Roller Doors
- Retail Shops
- Warehouses
- Factories
- Shopping Centres
- Garages
- Loading Bays
- Workshops
- Storage Facilities
Package Includes
- 1 × EUROMATIC TITAN 200BM E Central Motor
- 1 × Factory-Fitted Electrobrake
- Mounting Accessories
- Installation Manual
Why Choose EUROMATIC?
The EUROMATIC TITAN 200BM E combines powerful lifting performance, a durable dual motor design and an integrated electrobrake for maximum security. Designed for demanding commercial and industrial applications, it delivers dependable operation, long service life and smooth shutter movement, making it an ideal solution for professional rolling shutter automation across Dubai, Sharjah, Abu Dhabi and throughout the UAE.
