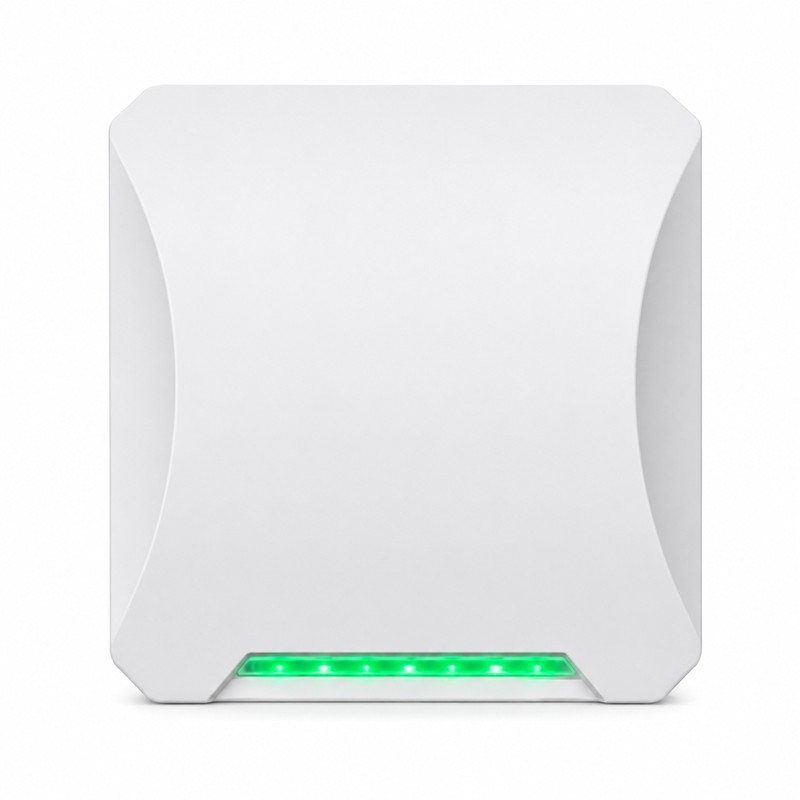

EUROMATIC UHF-120 20M Long Range RFID Reader for Vehicle Access Control UAE
20 Metre UHF RFID Reader for Parking Barriers, Automatic Gates & Access Control Systems
The EUROMATIC UHF-120 20M Long Range RFID Reader is a professional UHF passive RFID reader developed for vehicle access control, automatic gates, parking barriers and intelligent parking management systems. Using advanced UHF RFID technology, it provides fast, accurate and contactless vehicle identification with a maximum reading distance of up to 20 metres, making it ideal for high-speed vehicle entry applications.
The reader supports the ISO18000-6C (EPC Gen2) protocol and operates on the 902–928MHz frequency band. Equipped with a high-performance integrated antenna and multiple communication interfaces, it integrates easily with access control systems, parking management software, sliding gate motors and barrier gates. Its weather-resistant enclosure ensures reliable outdoor operation in residential, commercial and industrial environments throughout the UAE.
Key Features
- Reading distance up to 20 metres.
- Supports ISO18000-6C (EPC Gen2) UHF RFID tags.
- High-gain integrated directional antenna.
- Fast and accurate vehicle identification.
- Supports multi-tag reading with high-speed recognition.
- Adjustable RF output power from 0–33dBm.
- Frequency hopping technology for stable communication.
- Supports RS232, RS485, Wiegand 26 and Wiegand 34.
- Optional RJ45 Ethernet interface.
- Weather-resistant outdoor design.
- Low power consumption.
- Easy installation and seamless system integration.
Technical Specifications
| Model | UHF-120 |
| Reading Distance | Up to 20 Metres |
| Working Frequency | 902–928 MHz |
| Protocol | ISO18000-6C (EPC Gen2) |
| RF Output Power | 0–33 dBm Adjustable |
| Group Reading Capacity | Up to 200 Tags |
| Communication | RS232, RS485, Wiegand 26, Wiegand 34 |
| Optional Interface | RJ45 Ethernet |
| Working Voltage | DC 9–12V |
| Working Current | 150mA |
| Operating Temperature | -20°C to +60°C |
| Housing Material | ABS Engineering Plastic |
| Protection | Weather Resistant |
Applications
- Parking Barrier Systems
- Vehicle Access Control
- Automatic Sliding Gates
- Automatic Swing Gates
- Residential Communities
- Commercial Buildings
- Office Parking Areas
- Factories
- Warehouses
- Logistics Centres
- Hotels
- Industrial Facilities
Package Includes
- 1 × EUROMATIC UHF-120 Long Range RFID Reader
- 1 × Mounting Bracket
- Installation Accessories
- 1 × User Manual
Why Choose EUROMATIC?
The EUROMATIC UHF-120 20M Long Range RFID Reader delivers reliable long-distance RFID performance for vehicle access control, parking management and gate automation. With high-speed tag recognition, multiple communication interfaces and seamless compatibility with parking barriers and automatic gate systems, it is an ideal solution for residential, commercial and industrial installations across Dubai, Sharjah, Abu Dhabi and throughout the UAE.
