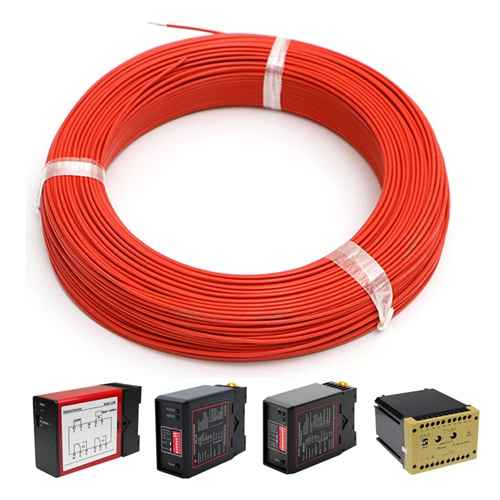

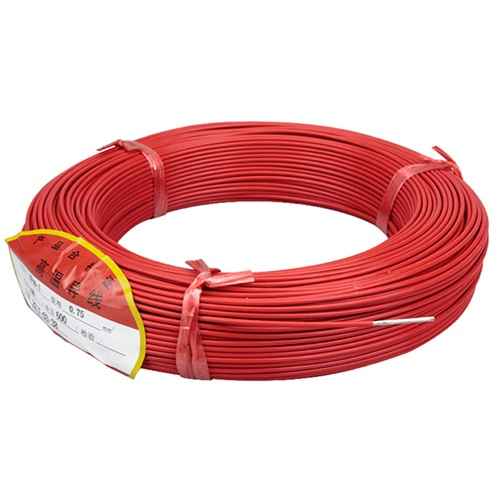

Loop Cable for Vehicle Loop Detector
- High temperature and aging resistance
- Corrosion and acid and alkali resistance
- The groove width is generally 3-5mm
- 40-50mm depth
- Loop Cable for Vehicle Loop Detector
What is loop detector cable?
- Used in vehicle monitoring equipment for detection of traffic movements
- via creation of inductive loop to frequency signal flowing in cable
- and metallic parts of vehicle. These cables are designed for installation
- in a slot cut into the carriageway.
How do you install a loop detector wire?
- Cutting a slot.
- Cleaning and drying the slot.
- Laying in the inductive-loop detector wire.
- Sealing the sawcut.
- Connecting the wire to the lead-in cable.
- Connecting the cable to the terminal strip in the cabinet.
- Ensuring the harness connects the terminal strip to the electronics unit.
Specifications:
- color : red
- Material : tinned copper wire
- Below 3 meters : Ensure that the inductance value is between 100uH and 30OuH
- 3-6 meters : 5-6 turns
- 6-10 meters : 4-5 turns
- 10-25 meters : 3 turns
- Below 25 meters : 2 turns
- The scope of work : Between 100uH-300uH
Loop Cable for Vehicle Loop Detector
- Brand: EUROMATIC
- Product Code: Loop Cable for Vehicle Loop Detector
- Availability: In Stock
-
199 AED
