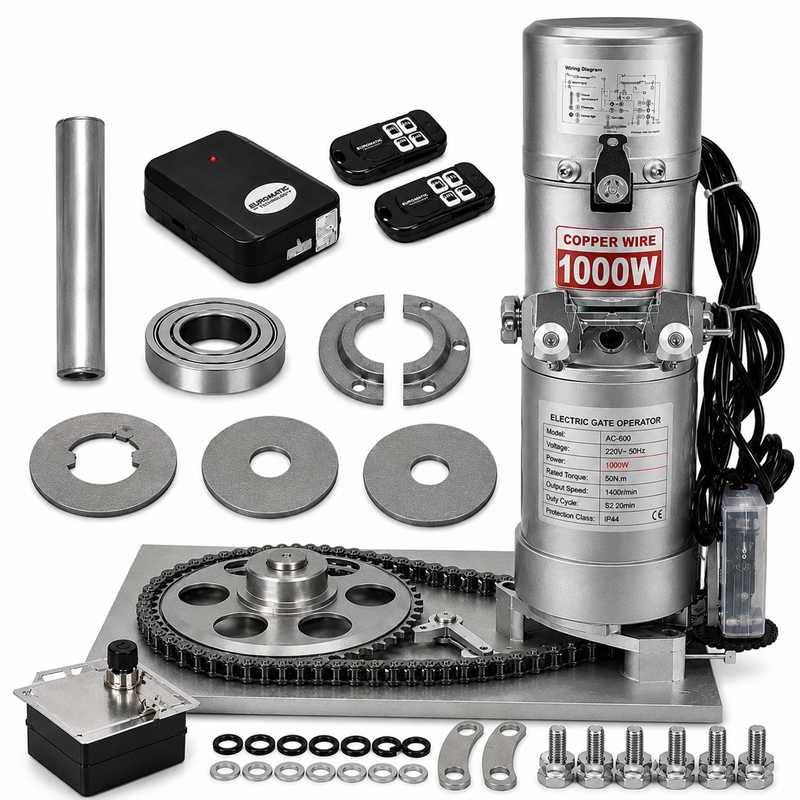

EUROMATIC Rolling Shutter Side Motor 2000 KG 3 Phase UAE
Need help choosing the right product?
Share your door type, size and application with our team for a suitable product recommendation and quotation.
Heavy-Duty 1000W Copper Wire Rolling Shutter Motor for Industrial Doors
The EUROMATIC Rolling Shutter Side Motor 2000 KG is a heavy-duty 3 phase motor designed for large commercial and industrial rolling shutter doors. With a maximum lifting capacity of 2000 KG and a powerful 1000W copper wire motor, it provides reliable performance for demanding rolling shutter applications.
The motor is supplied with a heavy-duty mechanical system featuring 3 pieces of 8-inch circular disks, 4 relays and 4 limit switches. Its reinforced mounting plates and heavy-duty shaft provide the strength required for large industrial rolling shutter installations.
The complete system includes 1 controller and 2 remote controls, allowing convenient wireless operation of the rolling shutter. The EUROMATIC 2000 KG side motor is suitable for factories, warehouses, logistics centres, commercial buildings, loading areas and other heavy-duty industrial applications throughout the UAE.
Key Features
- Maximum lifting capacity up to 2000 KG.
- Heavy-duty 3 phase rolling shutter side motor.
- 1000W copper wire motor.
- 100% copper motor winding.
- 3 pieces of 8-inch circular disks.
- 4 heavy-duty relays.
- 4 precision limit switches.
- Heavy-duty reinforced mounting plates.
- 45 × 300mm heavy-duty shaft.
- Remote control operation.
- Supplied with 1 controller.
- Supplied with 2 remote controls.
- Designed for large rolling shutter doors.
- Suitable for commercial and industrial applications.
- Heavy-duty construction for demanding installations.
- Low-maintenance design.
Technical Specifications
| Brand | EUROMATIC |
| Model | EU-RSM-2000-3P |
| Motor Type | Rolling Shutter Side Motor – 3 Phase |
| Maximum Lifting Capacity | 2000 KG |
| Motor Power | 1000W |
| Motor Winding | Copper Wire |
| Circular Disks | 3 Pieces × 8 Inches |
| Relays | 4 Relays |
| Limit Switches | 4 Limits |
| Main Mounting Plate | 650 × 250 × 16mm |
| Secondary Mounting Plate | 300 × 300 × 8mm |
| Shaft Size | 45 × 300mm |
| Controller | 1 × Controller |
| Remote Controls | 2 × Remote Controls |
| Application | Heavy-Duty Commercial & Industrial Rolling Shutters |
2000 KG Heavy-Duty Lifting Capacity
With a maximum lifting capacity of 2000 KG, the EUROMATIC rolling shutter side motor is designed for compatible large and heavy rolling shutter doors. It is an ideal solution for factories, warehouses, logistics facilities and other industrial applications requiring a powerful shutter motor.
1000W Copper Wire Motor
The motor features a powerful 1000W copper wire winding designed for reliable performance in demanding rolling shutter applications. Copper motor winding provides excellent electrical conductivity and is suitable for heavy-duty commercial and industrial shutter operation.
3 × 8-Inch Circular Disks
The mechanical system includes 3 pieces of 8-inch circular disks designed to support the heavy-duty rolling shutter drive mechanism. The robust construction makes the system suitable for large industrial shutter installations.
4 Relays & 4 Limit Switches
The EUROMATIC 2000 KG Rolling Shutter Motor is equipped with 4 relays and 4 limit switches. The limit system provides accurate control of the shutter's upper and lower stopping positions, while the heavy-duty relay configuration supports reliable motor control.
Heavy-Duty Mounting Plates
The motor system includes reinforced mounting plates measuring 650 × 250 × 16mm and 300 × 300 × 8mm. These heavy-duty steel plates provide a strong mounting structure for demanding industrial rolling shutter installations.
45 × 300mm Heavy-Duty Shaft
A heavy-duty 45 × 300mm shaft provides strong mechanical support for the rolling shutter drive system. The reinforced shaft is designed for applications involving large and heavy rolling shutter doors.
Controller & Remote Control Operation
The system is supplied with 1 controller and 2 remote controls, providing convenient wireless operation of the rolling shutter. Users can control the shutter without having to operate the motor manually during normal use.
Applications
- Industrial Rolling Shutters
- Heavy-Duty Rolling Shutters
- Factory Roller Shutters
- Warehouse Shutters
- Logistics Centre Doors
- Distribution Centre Shutters
- Loading Bay Roller Shutters
- Commercial Building Shutters
- Large Shop Shutters
- Storage Facility Doors
- Industrial Garage Doors
- Large Automatic Roller Shutter Doors
Package Includes
- 1 × EUROMATIC Rolling Shutter Side Motor 2000 KG
- 3 × 8-Inch Circular Disks
- 1 × 650 × 250 × 16mm Mounting Plate
- 1 × 300 × 300 × 8mm Mounting Plate
- 1 × 45 × 300mm Shaft
- 1 × Controller
- 2 × Remote Controls
- Installation Accessories
Why Choose EUROMATIC 2000 KG Rolling Shutter Side Motor?
The EUROMATIC Rolling Shutter Side Motor 2000 KG is designed for demanding commercial and industrial rolling shutter applications. Its powerful 1000W copper wire motor, 2000 KG lifting capacity, 3 × 8-inch circular disks, 4 relays, 4 limit switches, reinforced mounting plates and heavy-duty 45 × 300mm shaft provide a strong and reliable solution for large rolling shutter installations throughout the UAE.
```
