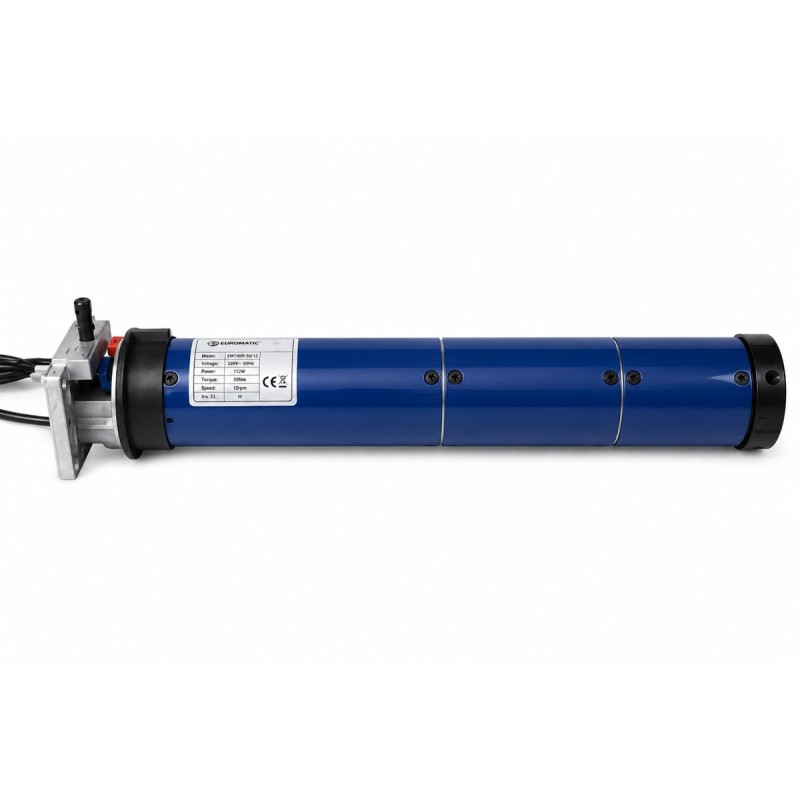

EUROMATIC Rolling Shutter Tubular Motor 92mm 330Nm UAE
Need help choosing the right product?
Share your door type, size and application with our team for a suitable product recommendation and quotation.
Heavy-Duty 330Nm Tubular Motor for Commercial & Industrial Rolling Shutters
The EUROMATIC Rolling Shutter Tubular Motor 92mm 330Nm is a powerful heavy-duty electric tubular motor designed for commercial and industrial rolling shutters, roller doors and automatic shutter systems. Featuring a 92mm tube diameter and powerful 330Nm rated torque, it provides strong and reliable lifting performance for demanding rolling shutter applications.
Operating on a 230V AC, 50Hz power supply, the motor delivers 830W rated power with a rated current of 3.80A. Its 9 RPM rated speed provides controlled and dependable opening and closing for compatible heavy-duty rolling shutter systems.
The motor features IP44 protection and Class H insulation for dependable operation. Its heavy-duty tubular construction allows installation inside a compatible roller tube, providing a compact and professional motor solution for commercial and industrial shutter automation.
Key Features
- Heavy-duty 92mm tubular motor design.
- Powerful 330Nm rated torque.
- 230V AC operating voltage.
- 50Hz rated frequency.
- 830W rated power input.
- 3.80A rated current.
- 9 RPM rated operating speed.
- S2 4-minute running time.
- IP44 protection rating.
- Class H insulation.
- Compact installation inside compatible roller tubes.
- High lifting torque for heavy rolling shutters.
- Smooth and reliable motorized operation.
- Suitable for commercial and industrial applications.
- Suitable for new installations and replacement projects.
Technical Specifications
| Brand | EUROMATIC |
| Model | EU-TM-92-330 |
| Product Type | Heavy-Duty Rolling Shutter Tubular Motor |
| Tube Diameter | 92mm |
| Rated Torque | 330Nm |
| Rated Voltage | 230V AC |
| Rated Frequency | 50Hz |
| Rated Power Input | 830W |
| Rated Current | 3.80A |
| Rated Speed | 9 RPM |
| Running Time | S2 4 Minutes |
| Protection Rating | IP44 |
| Insulation Class | Class H |
Powerful 330Nm Torque
With a rated torque of 330Nm, the EUROMATIC tubular motor provides powerful lifting performance for compatible heavy rolling shutters and roller doors. The high torque output makes this model suitable for demanding applications requiring greater operating force than lower-torque tubular motors.
Heavy-Duty 92mm Tubular Design
The 92mm tubular design provides a powerful yet compact drive solution for compatible roller tubes. The motor is installed inside the roller tube, helping create a clean and professional rolling shutter automation system while reducing externally mounted motor components.
830W Motor Power
The motor operates with a rated power input of 830W and rated current of 3.80A. Combined with its powerful 330Nm torque, it provides dependable motorized performance for compatible commercial and industrial rolling shutter applications.
9 RPM Operating Speed
The EUROMATIC 92mm 330Nm Tubular Motor operates at a rated speed of 9 RPM, providing controlled and consistent opening and closing for compatible heavy-duty rolling shutter systems.
IP44 Protection & Class H Insulation
The motor features an IP44 protection rating together with Class H insulation. These specifications provide dependable motor performance when correctly installed inside a suitable rolling shutter system.
Applications
- Commercial Rolling Shutters
- Industrial Rolling Shutters
- Heavy-Duty Roller Shutters
- Commercial Roller Doors
- Shop Shutters
- Warehouse Shutters
- Factory Shutters
- Commercial Building Shutters
- Automatic Shutter Systems
- Motorized Roller Door Systems
Commercial & Industrial Shutter Applications
The EUROMATIC Tubular Motor 92mm 330Nm is designed for compatible commercial and industrial rolling shutter applications requiring high operating torque. Its combination of 330Nm torque, 830W motor power and 92mm tubular construction provides a strong and practical automation solution for demanding shutter installations.
Choosing the Correct Tubular Motor
The correct tubular motor should be selected according to the shutter weight, shutter dimensions, roller tube diameter, curtain construction and required lifting torque. Always verify that the 92mm motor diameter and 330Nm torque are suitable for the specific rolling shutter system before installation.
Why Choose EUROMATIC 92mm 330Nm Tubular Motor?
The EUROMATIC Rolling Shutter Tubular Motor 92mm 330Nm combines powerful 330Nm torque, 830W motor power, 9 RPM operating speed and compact tubular installation. With IP44 protection and Class H insulation, it is an excellent solution for compatible commercial and industrial rolling shutter systems throughout Dubai, Sharjah, Abu Dhabi and across the UAE.
```
