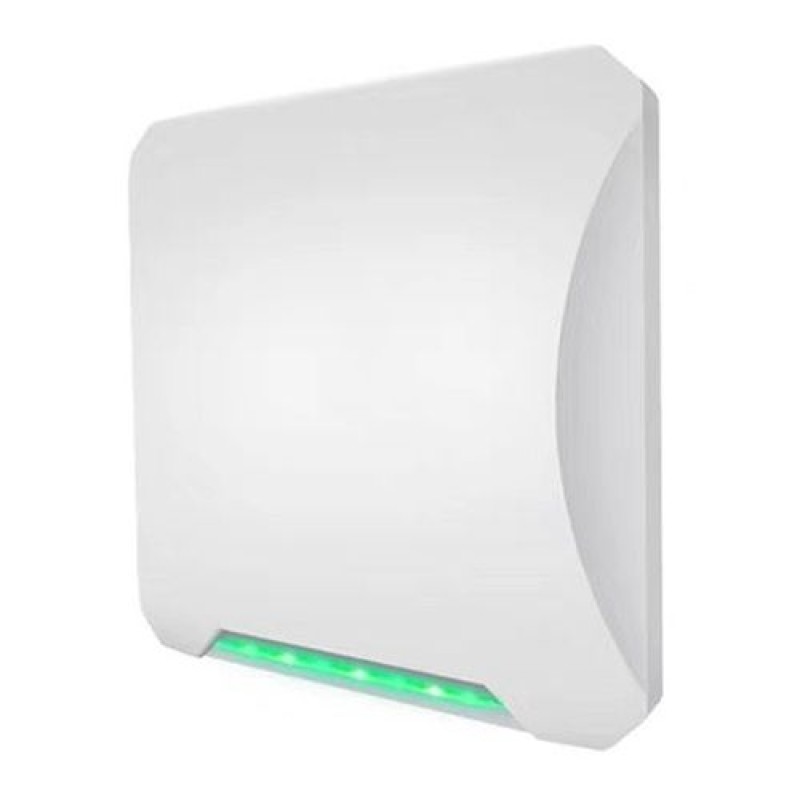

UHF RFID Long Range Reader 15 meter
- UHF RFID Integrated Reader Long Range 6meter
- UHF-202406 is a fixed compact reader, compatible
- with ISO 18000-6C standard, with an operating
- frequency of 902MHz~928MHz, exquisite appearance,
- and outstanding reading and writing performance.
- The reader can be widely used in warehousing logistics management,
- retail logistics center management,
- enterprise transportation management and automated production line management.
Application areas
- Logistics and warehousing management
- flow and warehousing management of goods,
- as well as flow management of mail,
- parcels and transport luggage
- Intelligent parking management parking lot management and charging automation;
- Production line management identification of fixed points in production processes;
- Product anti-counterfeiting detection
- using the write protection function of the memory
- in the tag to identify the authenticity of the product
- Other areas It has been widely used in club management, library,
- student enrollment, consumption management,
- attendance management, dining management,
- swimming pool management and other systems.
Product functions
- Low power, stable and reliable reading and writing distance
- Fast data reading rate
- Tag wake-up recognition
- Multi-region multi-tag reading
- Multi-protocol compatibility
- Waterproof appearance design
Specifications:
- System parameters : ARM7+E710 module
- Working frequency : National standard (920~925MHz)
- Identification distance : >25 meters
- Group reading performance : >500 tags
- Tag protocol : Support ISO18000-6C (EPC GEN2) protocol electronic tags
- Frequency hopping mode : Frequency hopping spectrum (FHSS)
- or fixed frequency, can be set by software;
- Working mode : Automatic mode, trigger mode, interactive mode, etc.
- RF power : 0-30dBm (power software adjustable)
- Antenna parameters : 8dBi circular polarization antenna (built-in)
- Supported interface :Standard RS232 or USB, RS485,
- Wiegand26, Wiegand34, optional RJ45,WIFI, GPRS, etc.
- Working voltage : +12V
- Identification prompt : Buzzer or LED flash
- Power consumption : <5W
- Working temperature : -20°C~+70°C (customization is required if out of range)
- Working humidity : 20%~ 95% (no condensation)
- Storage temperature : -40°C~+125°C
- Dimensions : 180x180x60mm/265x185x70mm
- Net weight : 550G
- Gross weight : 1100G
