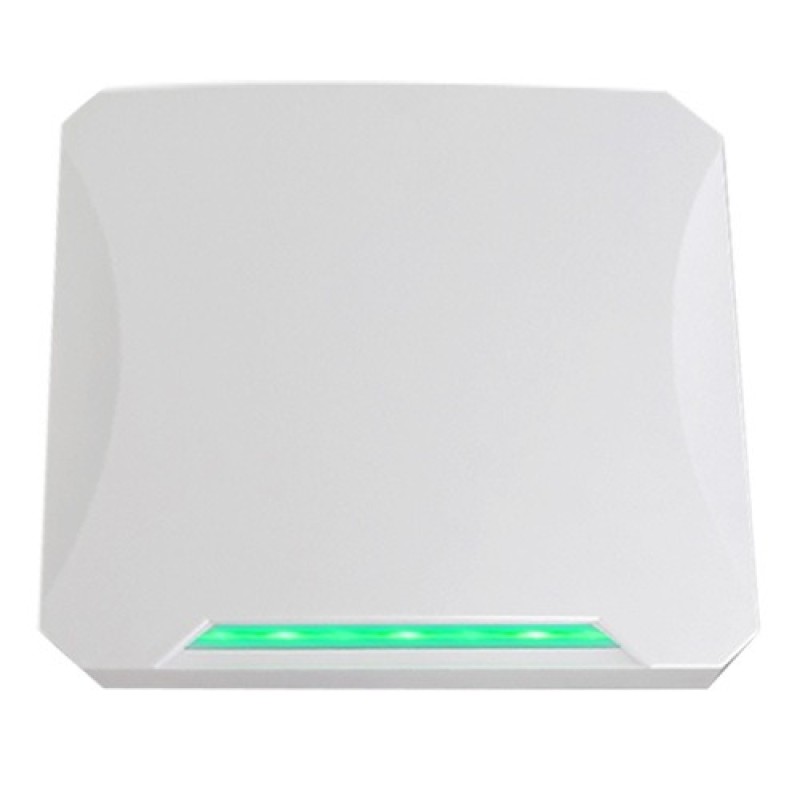

UHF RFID Long Range Reader 6 meter

• UHF RFID Integrated Reader Long Range 6meter
• UHF-202406 is a fixed compact reader, compatible
• with ISO 18000-6C standard, with an operating
• frequency of 902MHz~928MHz, exquisite appearance,
• and outstanding reading and writing performance.
• The reader can be widely used in warehousing logistics management,
• retail logistics center management,
• enterprise transportation management and automated production line management.

Application areas

• Logistics and warehousing management
• flow and warehousing management of goods,
• as well as flow management of mail,
• parcels and transport luggage
• Intelligent parking management parking lot management and charging automation;
• Production line management identification of fixed points in production processes;
• Product anti-counterfeiting detection
• using the write protection function of the memory
• in the tag to identify the authenticity of the product
• Other areas It has been widely used in club management, library,
• student enrollment, consumption management,
• attendance management, dining management,
• swimming pool management and other systems.

Product functions

• Low power, stable and reliable reading and writing distance
• Fast data reading rate
• Tag wake-up recognition
• Multi-region multi-tag reading
• Multi-protocol compatibility
• Waterproof appearance design

Specifications:

• System parameters : ARM7+UHF module
• Working frequency : National standard (920~925MHz)
• Identification distance : >6 meters
• Group reading performance : >50 tags
• Tag protocol : Support ISO18000-6C (EPC GEN2) protocol electronic tags
• Frequency hopping mode : Frequency hopping spectrum (FHSS)
• or fixed frequency, can be set by software;
• Working mode : Automatic mode, trigger mode, interactive mode, etc.
• RF power : 0-30dBm (power software adjustable)
• Antenna parameters : 8dBi circular polarization antenna (built-in)
• Supported interface :Standard RS232 or USB, RS485,
• Wiegand26, Wiegand34, optional RJ45,WIFI, GPRS, etc.
• Working voltage : +12V
• Identification prompt : Buzzer or LED flash
• Power consumption : <1W
• Working temperature : -20°C~+70°C (customization is required if out of range)
• Working humidity : 20%~ 95% (no condensation)
• Storage temperature : -40°C~+125°C
• Dimensions : 180x180x60mm/265x185x70mm
• Net weight : 550G
• Gross weight : 1100G
