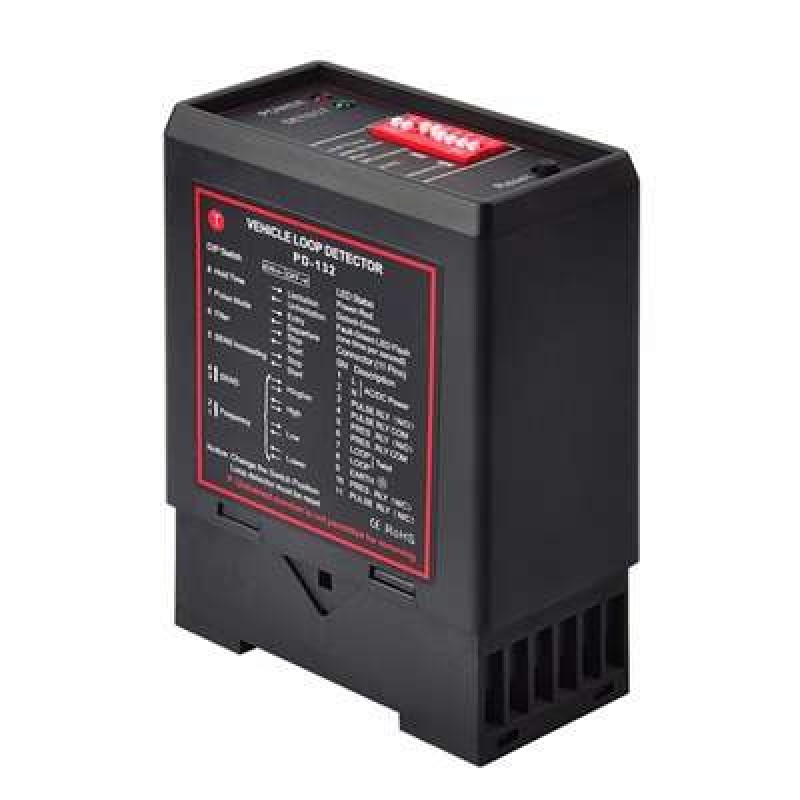

PD 132 Vehicle Loop Detector 24V:

• Model No : PD-132
• PD-132 Inductive Vehicle Single Loop Detector for Gate Barrier,

PD-132 Technical Data:

• Supply voltage: 24V AC.
• Reaction time: 10ms
• Signal holding time: Unlimited / limited
• when loop is permanently covered 10 minutes
• Sensitivity: Adjustable in 4 increments
• Loop inductance: Total loop plus connection wiring
• Ideal is 100μH to 300μH
• Loop connection wiring: Maximum length 20 meters,
• twisted at least 20 times per meter
• Size of Housing: 78x40x108 mm (L x W x H).
