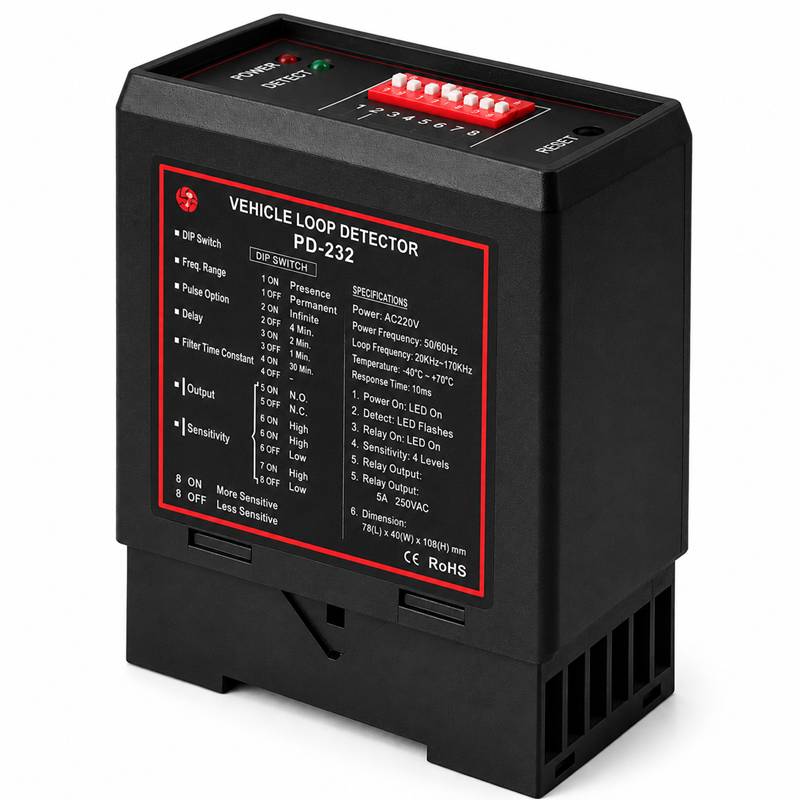

EUROMATIC PD-232 Dual Channel Vehicle Loop Detector for Automatic Gates & Parking Barriers UAE
Need help choosing the right product?
Share your door type, size and application with our team for a suitable product recommendation and quotation.
Dual Channel Inductive Vehicle Loop Detector for Dual-Lane Access Control Systems
The EUROMATIC PD-232 Dual Channel Vehicle Loop Detector is a professional inductive vehicle detection system designed for parking barriers, automatic sliding gates, swing gate motors, industrial entrances and vehicle access control systems. Featuring two independent detection channels, it can monitor both entry and exit lanes simultaneously, making it an ideal solution for dual-lane traffic management.
Using advanced microprocessor-based inductive loop technology, the PD-232 accurately detects vehicle presence by monitoring changes in loop inductance. With fast response, adjustable sensitivity and reliable relay outputs, it improves safety, prevents barrier arm collisions and ensures smooth vehicle movement in residential, commercial and industrial installations throughout the UAE.
Key Features
- Dual-channel inductive vehicle loop detector.
- Monitors two independent vehicle detection loops.
- 230V AC power supply.
- Fast 10ms response time.
- Four adjustable sensitivity levels.
- Automatic frequency adjustment.
- Reliable vehicle presence detection.
- Unlimited or 10-minute signal holding mode.
- High anti-interference performance.
- Compact DIN-rail mounting design.
- Easy installation and programming.
- Ideal for dual-lane parking barrier systems.
Technical Specifications
| Model | PD-232 |
| Product Type | Dual Channel Vehicle Loop Detector |
| Supply Voltage | 230V AC |
| Loop Quantity | 2 Independent Channels |
| Power Consumption | 4.5VA |
| Output Relay | 240V AC / 5A |
| Reaction Time | 10ms |
| Frequency Range | 20kHz – 170kHz |
| Sensitivity | 4 Adjustable Levels |
| Signal Holding Time | Unlimited / 10 Minutes |
| Loop Inductance | 100μH–300μH Recommended |
| Maximum Loop Cable Length | 20 Metres |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Housing Dimensions | 78 × 40 × 108 mm |
Applications
- Parking Barrier Gates
- Dual Lane Vehicle Access
- Automatic Sliding Gates
- Automatic Swing Gates
- Vehicle Access Control Systems
- RFID Vehicle Entry Systems
- Commercial Parking Areas
- Industrial Entrances
- Factories
- Warehouses
- Traffic Management Systems
- Security Checkpoints
Package Includes
- 1 × EUROMATIC PD-232 Dual Channel Vehicle Loop Detector
- 1 × Installation Manual
Why Choose EUROMATIC?
The EUROMATIC PD-232 Dual Channel Vehicle Loop Detector provides accurate, reliable and high-speed vehicle detection for dual-lane parking barriers, automatic gates and vehicle access control systems. Its dual-channel design, adjustable sensitivity and stable inductive loop technology make it the ideal solution for professional commercial and industrial automation projects across Dubai, Sharjah, Abu Dhabi and throughout the UAE.
