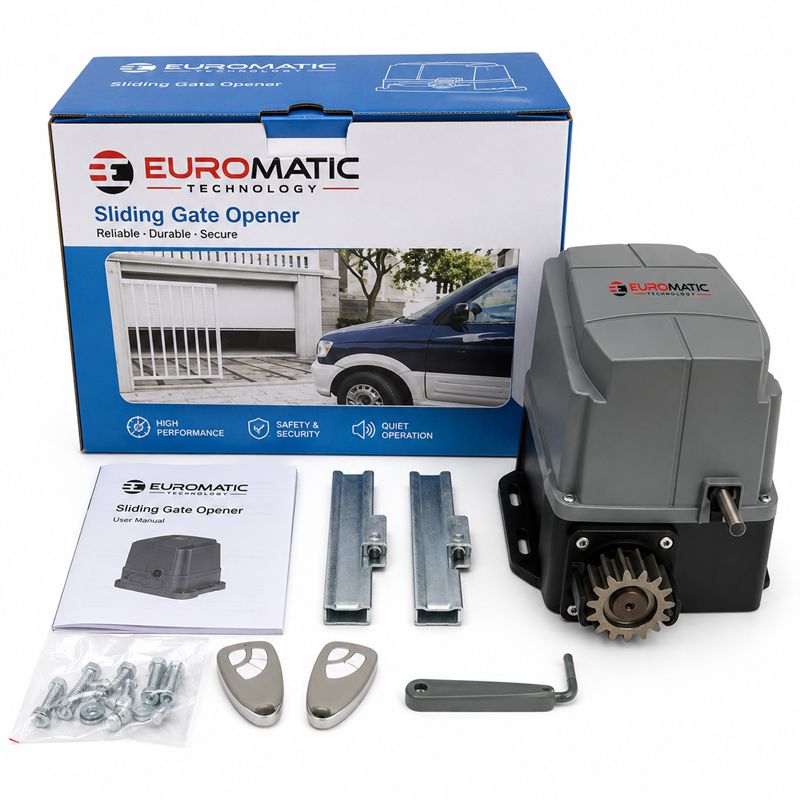

EUROMATIC Sliding Gate Motor 1200 KG UAE
Need help choosing the right product?
Share your door type, size and application with our team for a suitable product recommendation and quotation.
Heavy-Duty 330W Automatic Sliding Gate Opener with Obstacle Rebound
The EUROMATIC Sliding Gate Motor 1200 KG is a powerful automatic sliding gate opener designed for residential, commercial and industrial gates weighing up to 1200 KG. Equipped with a 330W AC motor, it delivers smooth, reliable and low-noise operation for demanding automatic gate applications.
The intelligent electronic control system detects changes in resistance while the gate is moving and provides an automatic rebound function when resistance is encountered. This helps improve operational safety and provides additional protection during automatic opening and closing.
The remote control system uses secure rolling code technology, while the AC motor incorporates thermal protection against excessive operating temperature. Manual operation is also available during an emergency power failure.
Key Features
- Maximum gate weight up to 1200 KG.
- Powerful 330W AC motor.
- 220–240V AC operating voltage.
- High-power and low-noise motor operation.
- 11.5 m/min gate operating speed.
- 1400 RPM motor operating speed.
- Intelligent resistance detection.
- Automatic rebound function when resistance is detected.
- Secure rolling code remote control technology.
- AC motor with thermal protection.
- 120°C overheat protection temperature.
- Manual operation during emergency power failure.
- Supports bidirectional door opening function.
- Optional warning light connection.
- Optional infrared safety sensor connection.
- Operating temperature from -20°C to +50°C.
- Suitable for residential, commercial and industrial gates.
Technical Specifications
| Brand | EUROMATIC |
| Model | EU-SG1200 |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 1200 KG |
| Motor Type | AC Motor |
| Input Power | 330W |
| Operating Voltage | 220–240V AC |
| Overheat Protection Temperature | 120°C |
| Motor Operating Speed | 1400 RPM |
| Gate Operating Speed | 11.5 m/min |
| Ambient Temperature | -20°C to +50°C |
| Obstacle Detection | Yes |
| Obstacle Rebound Function | Yes |
| Remote Control Technology | Rolling Code |
| Thermal Protection | Yes |
| Manual Emergency Operation | Yes |
| Bidirectional Opening | Supported |
| Warning Light | Optional |
| Infrared Safety Sensors | Optional |
1200 KG Heavy-Duty Gate Capacity
The EUROMATIC Sliding Gate Motor is designed for compatible sliding gates weighing up to 1200 KG. Its heavy-duty design makes it suitable for larger residential gates, commercial entrances, warehouses, factories and industrial properties.
330W High-Power AC Motor
The operator features a powerful 330W AC motor operating from a 220–240V AC power supply. With a motor operating speed of 1400 RPM, it is designed to provide high power while maintaining smooth and low-noise gate operation.
11.5 m/min Operating Speed
With a gate operating speed of up to 11.5 metres per minute, the EUROMATIC 1200 KG Sliding Gate Motor provides efficient and controlled automatic opening and closing for compatible sliding gates.
Intelligent Obstacle Detection & Rebound
The electronic control chip continuously detects changes in resistance during gate movement. When abnormal resistance is encountered, the system provides an automatic rebound function to help reduce the risk of impact and improve operational safety.
Rolling Code Remote Control
The remote control system uses rolling code technology for secure wireless gate operation. This technology provides improved security compared with conventional fixed-code remote control systems.
Thermal Motor Protection
The AC motor incorporates thermal protection with an overheat protection temperature of 120°C. This helps protect the motor against excessive operating temperatures during demanding gate operation.
Manual Operation During Power Failure
In the event of an emergency power failure, the gate motor supports manual operation. This allows the sliding gate to be released and moved manually when electrical power is unavailable.
Bidirectional Door Opening Function
The control system supports a bidirectional door opening function, providing additional flexibility for compatible sliding gate configurations and access requirements.
Optional Warning Light & Infrared Sensors
The EUROMATIC 1200 KG Sliding Gate Motor supports optional warning lights and infrared safety sensors. A flashing warning light can provide a visual indication while the gate is moving, while compatible infrared sensors can help detect obstacles within the gate operating area.
Compatible Gate Automation Accessories
- Rolling Code Remote Controls
- Infrared Photocell Safety Sensors
- Flashing Warning Lights
- Push Button Switches
- Key Switches
- GSM Gate Openers
- Wi-Fi Gate Controllers
- RFID Access Control Systems
- UHF Long Range Readers
- Loop Detectors
Applications
- Villa Sliding Gates
- Residential Entrance Gates
- Commercial Sliding Gates
- Warehouse Gates
- Factory Entrance Gates
- Industrial Sliding Gates
- Office Building Gates
- Compound Entrance Gates
- Parking Entrance Gates
- Automatic Vehicle Access Gates
Why Choose EUROMATIC Sliding Gate Motor 1200 KG?
The EUROMATIC Sliding Gate Motor 1200 KG combines a 1200 KG gate capacity, 330W AC motor, 11.5 m/min operating speed, intelligent obstacle rebound, rolling code remote technology and thermal motor protection. With manual emergency operation and support for additional safety accessories, it provides a powerful and dependable sliding gate automation solution for residential, commercial and industrial installations throughout the UAE.
