250W Automatic Sliding Gate Opener with Obstacle Rebound & Rolling Code Remote

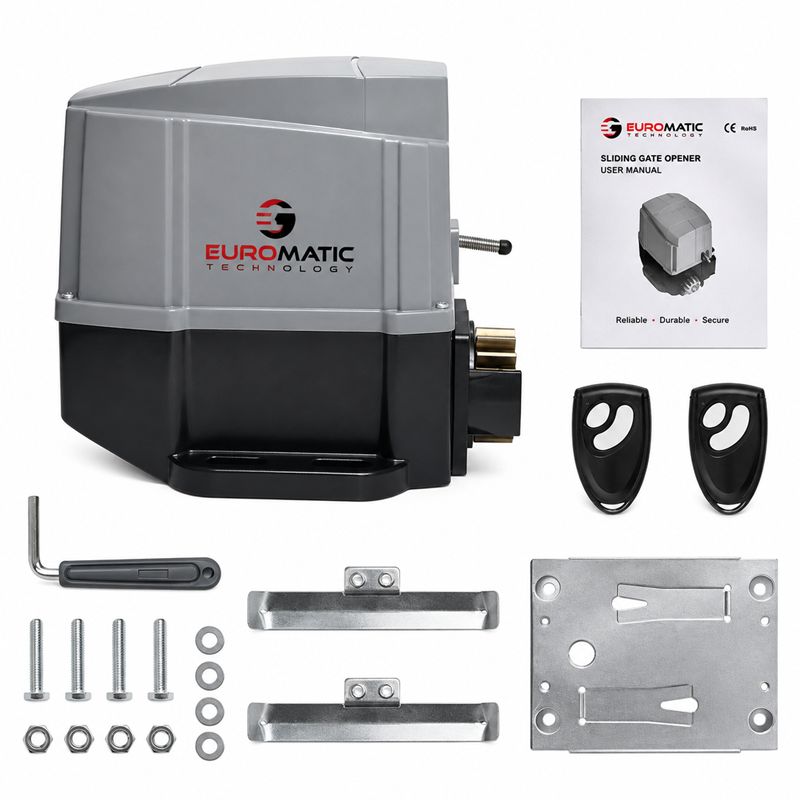

The EUROMATIC Sliding Gate Motor 800 KG is a powerful and reliable automatic gate opener designed for residential, commercial and light industrial sliding gates weighing up to 800 KG. Powered by a 250W AC motor, it provides smooth operation with an operating speed of up to 11.5 metres per minute.
The intelligent electronic control system detects changes in resistance while the gate is moving and provides an obstacle rebound function when resistance is detected. This helps improve safety during automatic gate opening and closing.
For secure wireless operation, the remote control system uses rolling code technology. The motor also incorporates thermal protection and supports manual operation during an emergency power failure.
Key Features
- Suitable for sliding gates weighing up to 800 KG.
- Powerful 250W AC motor.
- 220–240V AC operating voltage.
- 11.5 m/min operating speed.
- Intelligent obstacle resistance detection.
- Automatic rebound function when resistance is detected.
- Secure rolling code remote control technology.
- AC motor with integrated thermal protection.
- 120°C overheat protection temperature.
- 1400 RPM motor operating speed.
- High-power and low-noise motor operation.
- Manual operation during emergency power failure.
- Supports bidirectional door opening function.
- Optional warning light connection.
- Optional infrared safety sensor connection.
- Suitable for residential and commercial gate automation.
- Designed for operation from -20°C to +50°C.
Technical Specifications
| Brand | EUROMATIC |
| Model | EU-SG800 |
| Product Type | Automatic Sliding Gate Motor |
| Maximum Gate Weight | 800 KG |
| Motor Type | AC Motor |
| Input Power | 250W |
| Operating Voltage | 220–240V AC |
| Overheat Protection Temperature | 120°C |
| Motor Operating Speed | 1400 RPM |
| Gate Operating Speed | 11.5 m/min |
| Ambient Operating Temperature | -20°C to +50°C |
| Obstacle Detection | Yes |
| Obstacle Rebound | Yes |
| Remote Control Technology | Rolling Code |
| Thermal Protection | Yes |
| Manual Emergency Operation | Yes |
| Bidirectional Opening | Supported |
| Warning Light | Optional |
| Infrared Safety Sensor | Optional |
800 KG Maximum Gate Capacity
The EUROMATIC Sliding Gate Motor is designed for compatible sliding gates weighing up to 800 KG. It provides dependable automatic operation for villa gates, residential entrances, commercial properties, warehouses and other sliding gate applications.
250W High-Power AC Motor
The operator is powered by a 250W AC motor operating from a 220–240V AC power supply. The motor operates at up to 1400 RPM and is designed to provide high power with low operating noise.
11.5 m/min Gate Operating Speed
With an operating speed of up to 11.5 metres per minute, the EUROMATIC 800 KG Sliding Gate Motor provides smooth and efficient automatic opening and closing for compatible sliding gates.
Intelligent Obstacle Detection & Rebound
The electronic control system can detect changes in resistance during gate movement. When abnormal resistance or an obstacle is detected, the system provides a rebound function to help improve operational safety.
Rolling Code Remote Control Technology
The remote control system uses rolling code technology for secure wireless gate operation. The transmitted code changes during use, providing enhanced security compared with basic fixed-code remote control systems.
AC Motor with Thermal Protection
The EUROMATIC 800 KG gate opener uses an AC motor with thermal protection. The overheat protection temperature is rated at 120°C, helping protect the motor during demanding operating conditions.
Manual Operation During Power Failure
In the event of an emergency power failure, the gate motor supports manual operation. This allows the gate to be released and operated manually when electrical power is unavailable.
Bidirectional Door Opening Function
The control system supports a bidirectional door opening function, providing additional flexibility for compatible sliding gate automation configurations and installation requirements.
Optional Warning Light & Infrared Safety Sensors
Compatible warning lights and infrared safety sensors can be added to further enhance the gate automation system. A warning light provides a visual indication during gate movement, while infrared photocell sensors can help detect obstacles in the gate operating area.
Compatible Gate Automation Accessories
- Remote Controls
- Flashing Warning Lights
- Infrared Photocell Sensors
- Push Button Switches
- Key Switches
- GSM Gate Openers
- Wi-Fi Gate Controllers
- RFID Access Control Systems
- UHF Long Range Readers
- Loop Detectors
Applications
- Villa Sliding Gates
- Residential Sliding Gates
- Commercial Entrance Gates
- Warehouse Gates
- Factory Entrance Gates
- Office Building Gates
- Compound Gates
- Parking Entrance Gates
- Automatic Vehicle Gates
- Light Industrial Sliding Gates
Why Choose EUROMATIC Sliding Gate Motor 800 KG?
The EUROMATIC Sliding Gate Motor 800 KG combines an 800 KG gate capacity, 250W AC motor, 11.5 m/min operating speed, intelligent obstacle rebound, rolling code remote technology and thermal motor protection. With manual emergency operation and support for additional safety accessories, it provides a complete and dependable sliding gate automation solution for residential and commercial installations throughout the UAE.
