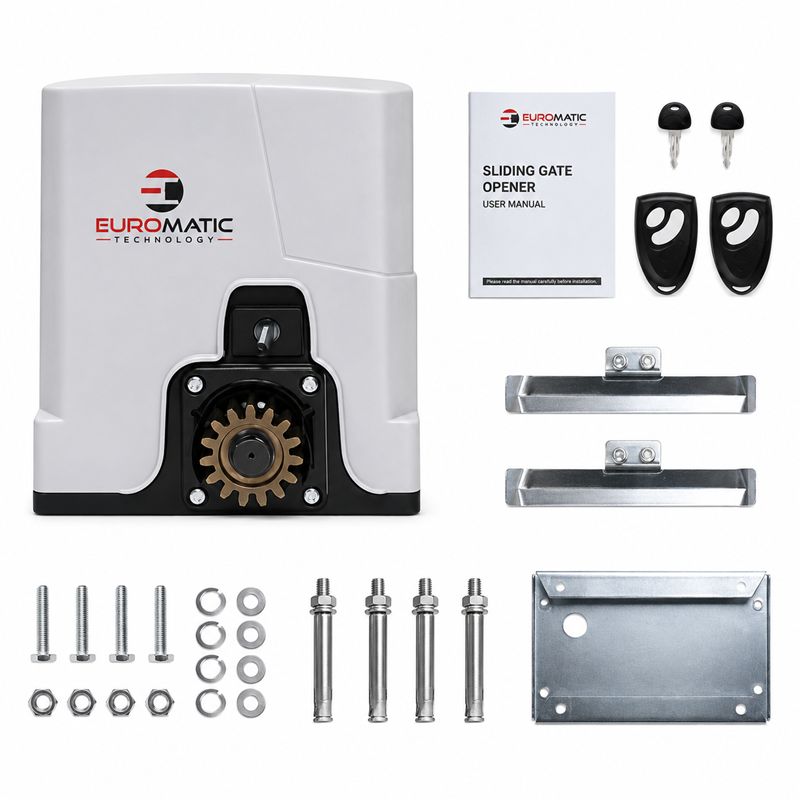

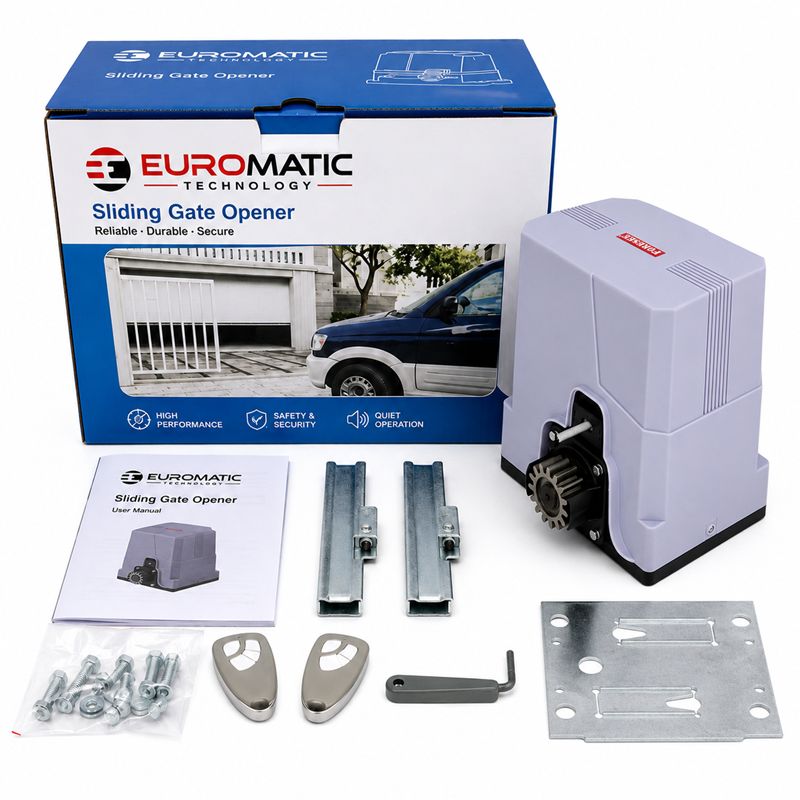

EUROMATIC DC Sliding Gate Motor 900 KG UAE

24V 210W DC Sliding Gate Opener with Soft Start, Obstacle Detection & Optional Wi-Fi

The EUROMATIC DC Sliding Gate Motor 900 KG is an intelligent automatic sliding gate operator designed for residential, commercial and light industrial gates weighing up to 900 KG. Powered by a 24V DC motor with 210W input power, it provides smooth, controlled and reliable automatic gate operation.

The motor features built-in soft start and soft stop technology to reduce sudden movement and mechanical impact when the gate starts, opens or closes. An intelligent computer chip continuously detects changes in resistance during operation and provides an automatic rebound function when abnormal resistance is encountered.

For additional convenience and safety, the system supports pedestrian access, selectable installation direction, optional Wi-Fi mobile APP control, infrared safety sensors, DC warning lights and optional backup power. It also supports a bidirectional door opening function for compatible installations.

Key Features

• Maximum sliding gate weight up to 900 KG.
• 24V DC motor technology.
• 210W input power.
• AC 230V 50/60Hz rated power supply.
• Built-in soft start function.
• Built-in soft stop function.
• Smooth and controlled gate movement.
• Intelligent resistance detection.
• Automatic rebound when resistance is detected.
• Selectable installation direction.
• Pedestrian access mode.
• Optional Wi-Fi module.
• Optional mobile APP remote control.
• Optional infrared safety sensors.
• Optional DC warning light.
• Optional backup power supply.
• Supports bidirectional door opening.
• Operating speed of ≥11 m/min.
• Motor speed of 3000 ± 200 RPM.
• Operating temperature from -20°C to +50°C.
• Suitable for residential and commercial gate automation.

Technical Specifications

900 KG Sliding Gate Capacity

The EUROMATIC DC Sliding Gate Motor is designed for compatible sliding gates weighing up to 900 KG. The increased capacity makes it suitable for larger residential gates, villas, commercial properties, compounds, offices, warehouses and controlled vehicle entrances.

24V DC Motor with 210W Power

The gate operator uses a 24V DC motor with 210W input power and operates from an AC 230V 50/60Hz power supply. The DC motor system provides smooth and controlled gate movement while supporting advanced electronic functions and optional backup power.

Soft Start & Soft Stop Technology

Built-in soft start and soft stop technology provides smoother acceleration and deceleration during gate operation. This reduces sudden mechanical impact on the gate, gear rack and motor system while providing quieter and more controlled movement.

Operating Speed ≥11 m/min

The EUROMATIC 900 KG Sliding Gate Motor provides an operating speed of ≥11 metres per minute, while the motor operates at 3000 ± 200 RPM. This provides efficient automatic opening and closing for compatible sliding gate systems.

Intelligent Obstacle Detection & Rebound

The intelligent computer chip monitors resistance while the gate is moving. When abnormal resistance is detected, the system provides an automatic rebound function to help enhance safety during automatic opening and closing.

Optional Wi-Fi & Mobile APP Control

An optional Wi-Fi module can be installed to enable remote gate control through a compatible mobile APP. This adds smart control capability to the automatic sliding gate system.

Pedestrian Access Mode

The built-in pedestrian access function allows the sliding gate to open partially instead of completing a full opening cycle. This provides convenient pedestrian entry while reducing unnecessary full gate movement.

Selectable Installation Direction

The gate opening direction can be selected according to the installation requirements, providing flexibility for compatible left-opening and right-opening sliding gates.

Infrared Safety Sensor Compatible

Optional infrared photocell safety sensors can be installed to help detect vehicles, pedestrians and other obstacles within the gate operating area, further improving the safety of the automatic gate system.

Optional DC Warning Light

A compatible DC warning light can be connected to provide a visual indication while the automatic gate is opening or closing.

Optional Backup Power Supply

An optional backup power supply can be added to maintain gate operation during unexpected mains power interruptions, making it useful for installations where continued vehicle access is important.

Bidirectional Door Opening Function

The control system supports a bidirectional door opening function, providing additional flexibility for compatible sliding gate configurations and access requirements.

Compatible Gate Automation Accessories

• Remote Controls
• Wi-Fi Control Module
• Mobile APP Control
• Infrared Photocell Safety Sensors
• DC Flashing Warning Light
• Backup Power Supply
• Push Button Switches
• Key Switches
• GSM Gate Openers
• RFID Access Control Systems
• UHF Long Range RFID Readers
• Loop Detectors

Applications

• Villa Sliding Gates
• Residential Entrance Gates
• Commercial Sliding Gates
• Apartment Building Gates
• Office Building Gates
• Compound Entrance Gates
• Warehouse Gates
• Parking Entrance Gates
• Private Property Gates
• Automatic Vehicle Access Gates

Why Choose EUROMATIC DC Sliding Gate Motor 900 KG?

The EUROMATIC DC Sliding Gate Motor 900 KG combines a 900 KG gate capacity, 24V DC motor, 210W input power, soft start and soft stop, intelligent obstacle detection, automatic rebound and pedestrian access mode. With optional Wi-Fi APP control, infrared safety sensors, DC warning light and backup power supply, it provides a smart and reliable sliding gate automation solution for residential and commercial installations throughout the UAE.
